DOWNLOAD TECHNICAL DATA SHEETS
Fig-305
Y-Strainer
body: cast iron GG25
screen: stainless steel 304
flanged PN10
DN200 - DN300

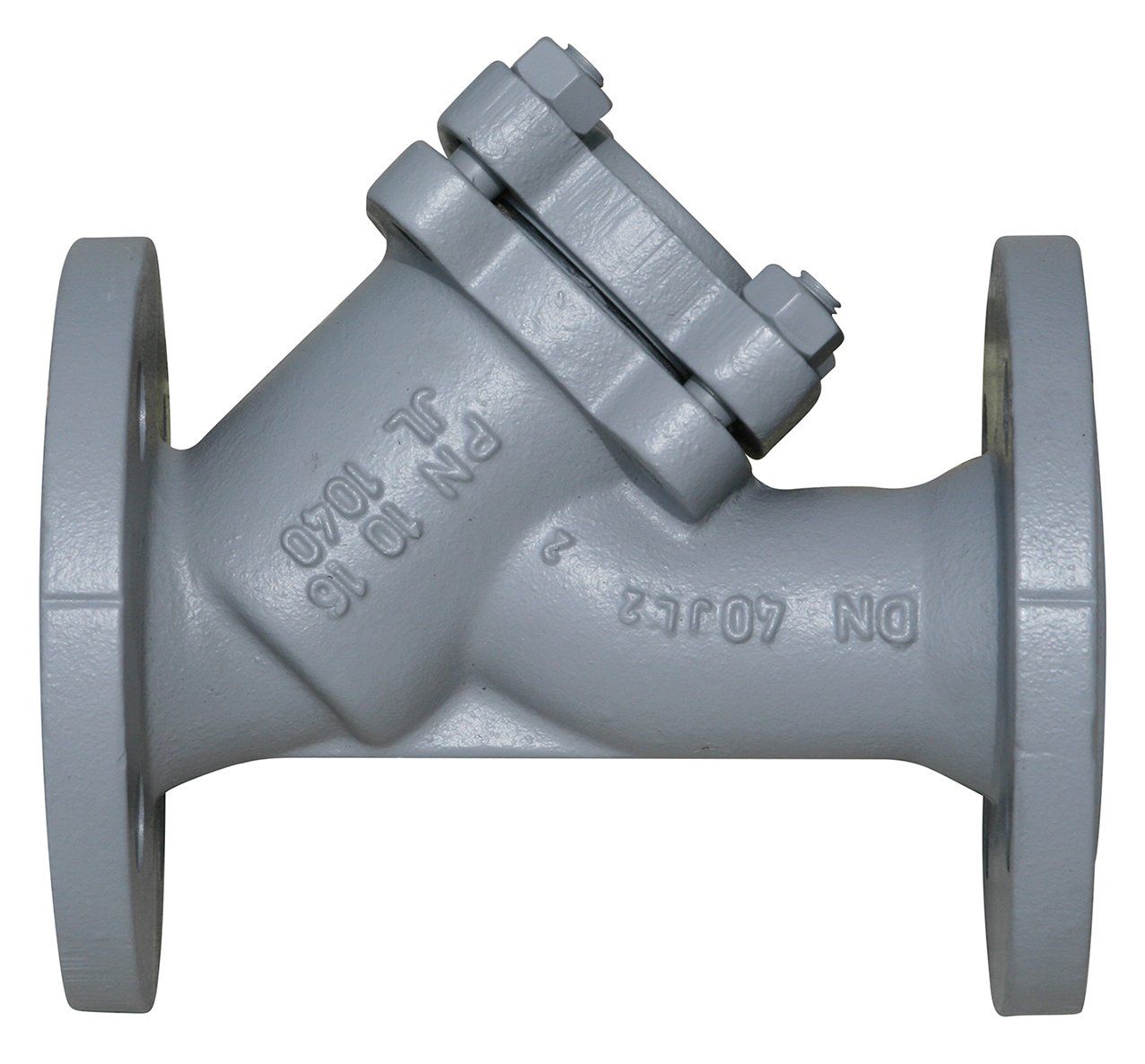

Fig-306
Y-Strainerbody: cast iron GG25
screen: stainless steel 304
flanged PN16
DN15 - DN300

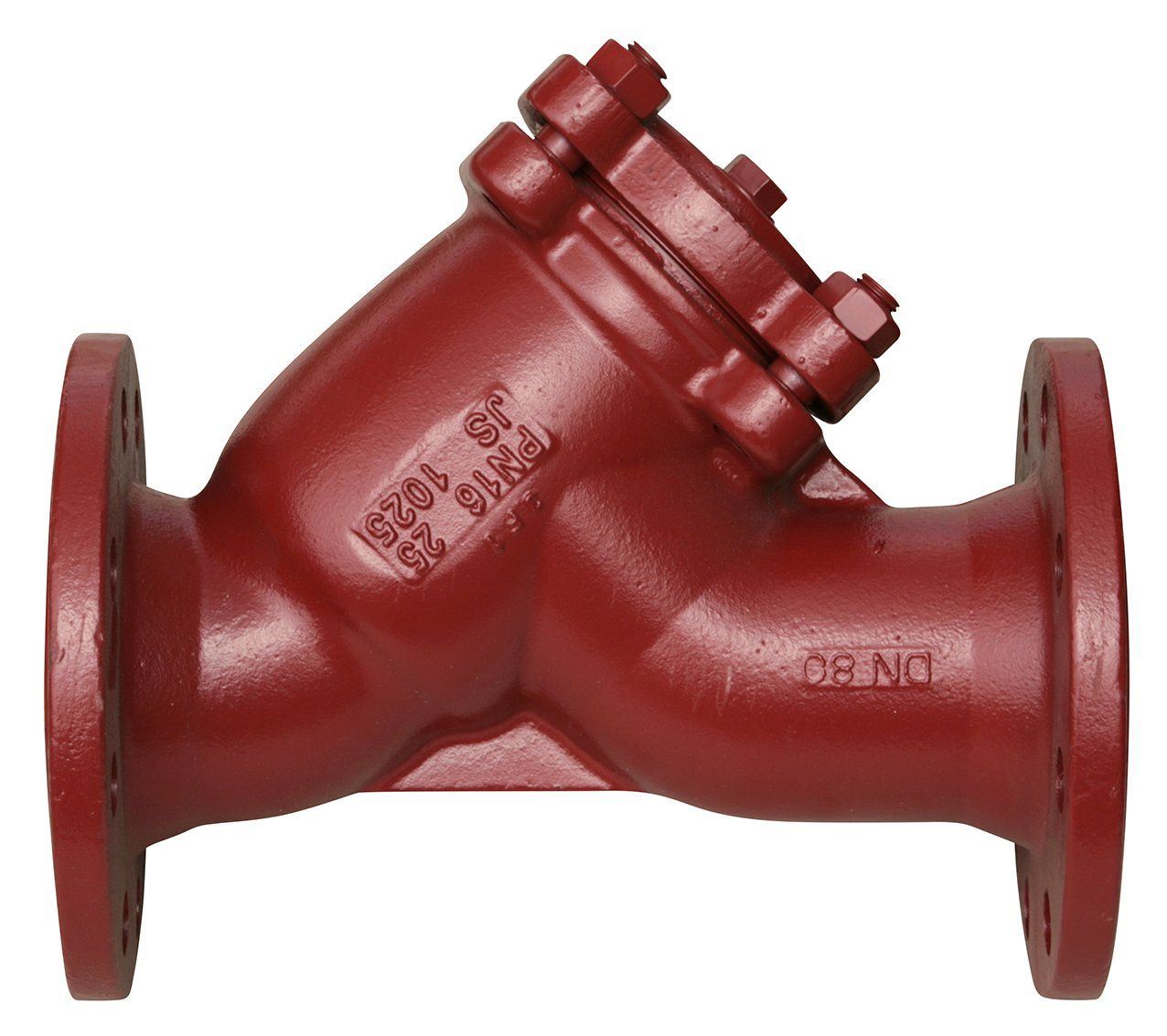

Fig-308
Y-Strainerbody: ductile iron (JS1025)
screen: stainless steel 304
flanged PN16
DN15 - DN300
Fig-308/25
Y-Strainerbody: ductile iron (JS1025)
screen: stainless steel 304
flanged PN25
DN15 - DN300

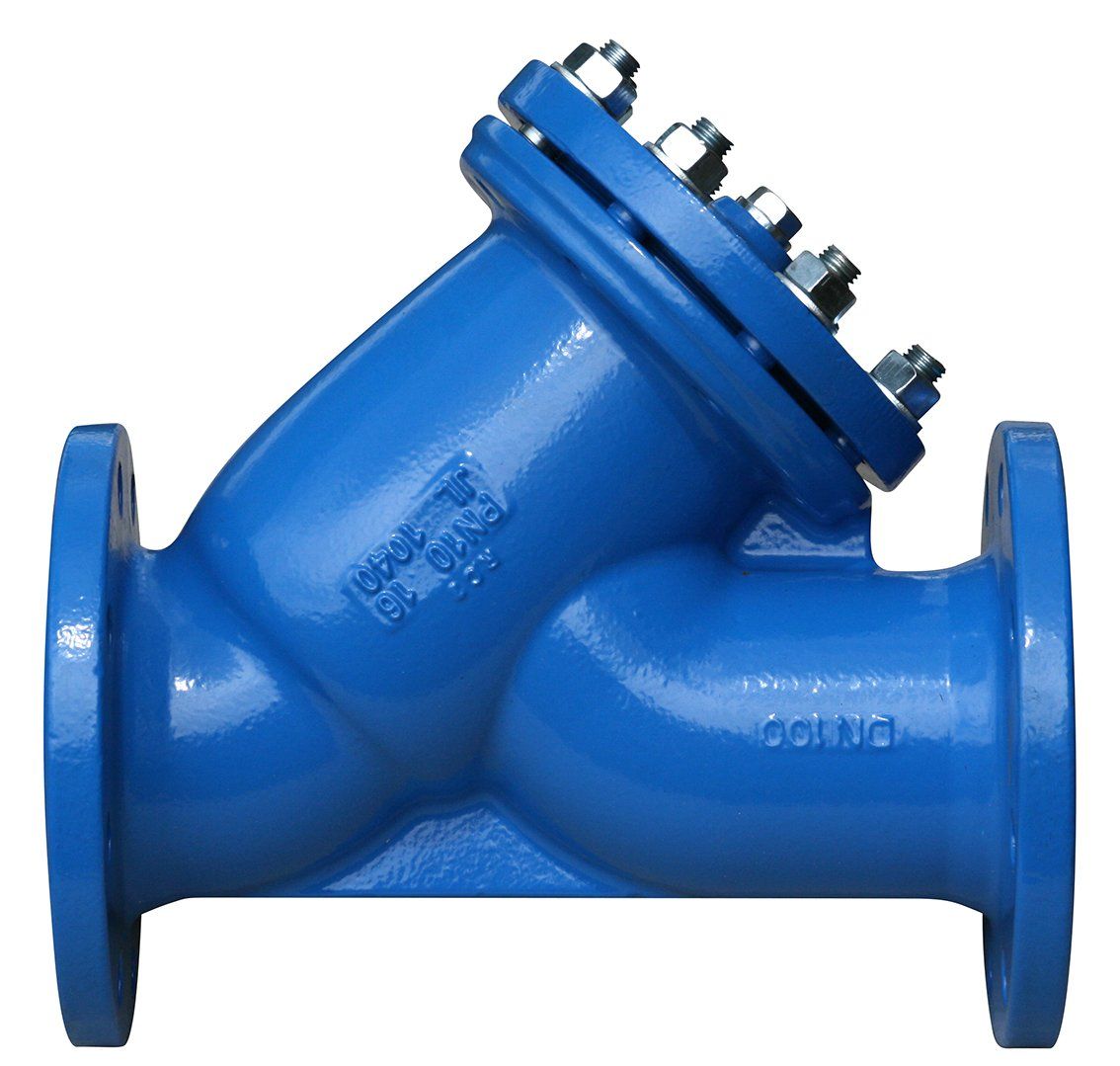

Fig-306E
Y-Strainer
coated: EPOXY (int./ext.)
body: cast iron GG25screen: stainless steel 304
flanged PN16
DN15 - DN300
Fig-351C / 352C
Y-Strainer
body: carbon steel GS-C25screen: stainless steel 304
flanged PN16 / 25/40
DN15 - DN400
Fig-380/381
Y-Strainer
body: 1.4408 / CF8Mscreen: stainless steel 316
flanged PN16 / 25/40
DN15 - DN400

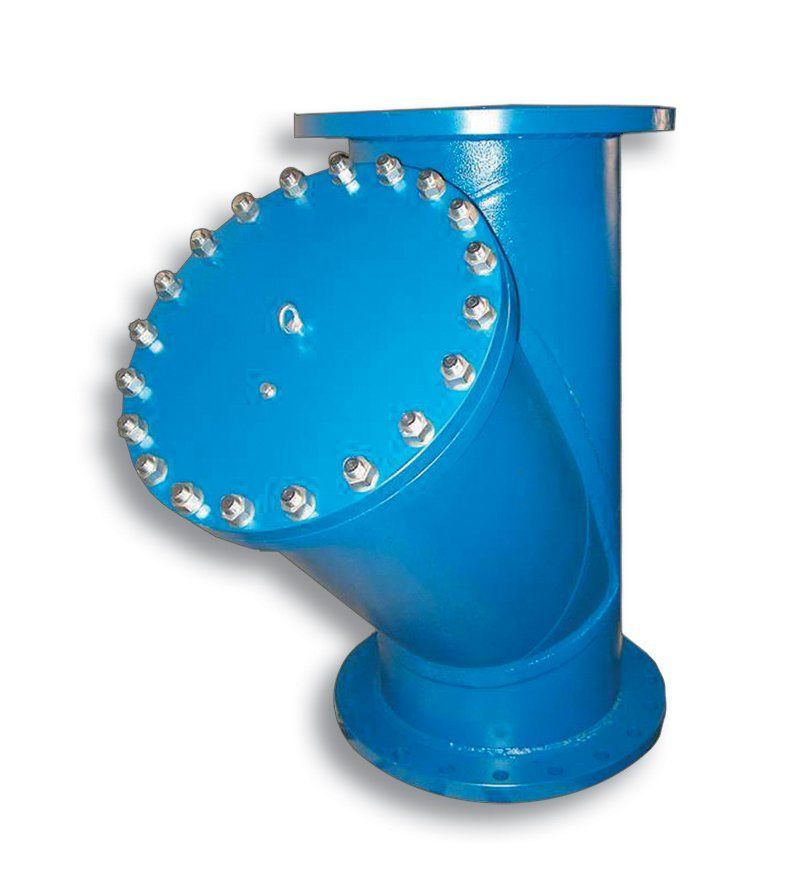

Fig-350-Y-10
Y-Strainer
body: steel welded constructionscreen: stainless steel 304
flanged PN10
DN250 - DN700
Fig-350-Y-16
Y-Strainerbody: steel welded construction
screen: stainless steel 304
flanged PN16
DN250 - DN700
Fig-301 / 301E (FEVAP)
Y-Strainer
body: cast iron GG25screen: stainless steel 304
flanged PN10 / 16
DN50 - DN100
Fig-370
ANSI Y-strainer
body: carbon steel A216 WCB
screen: stainless steel 304
flanged series 150 lbs
DN 2 "- 12"

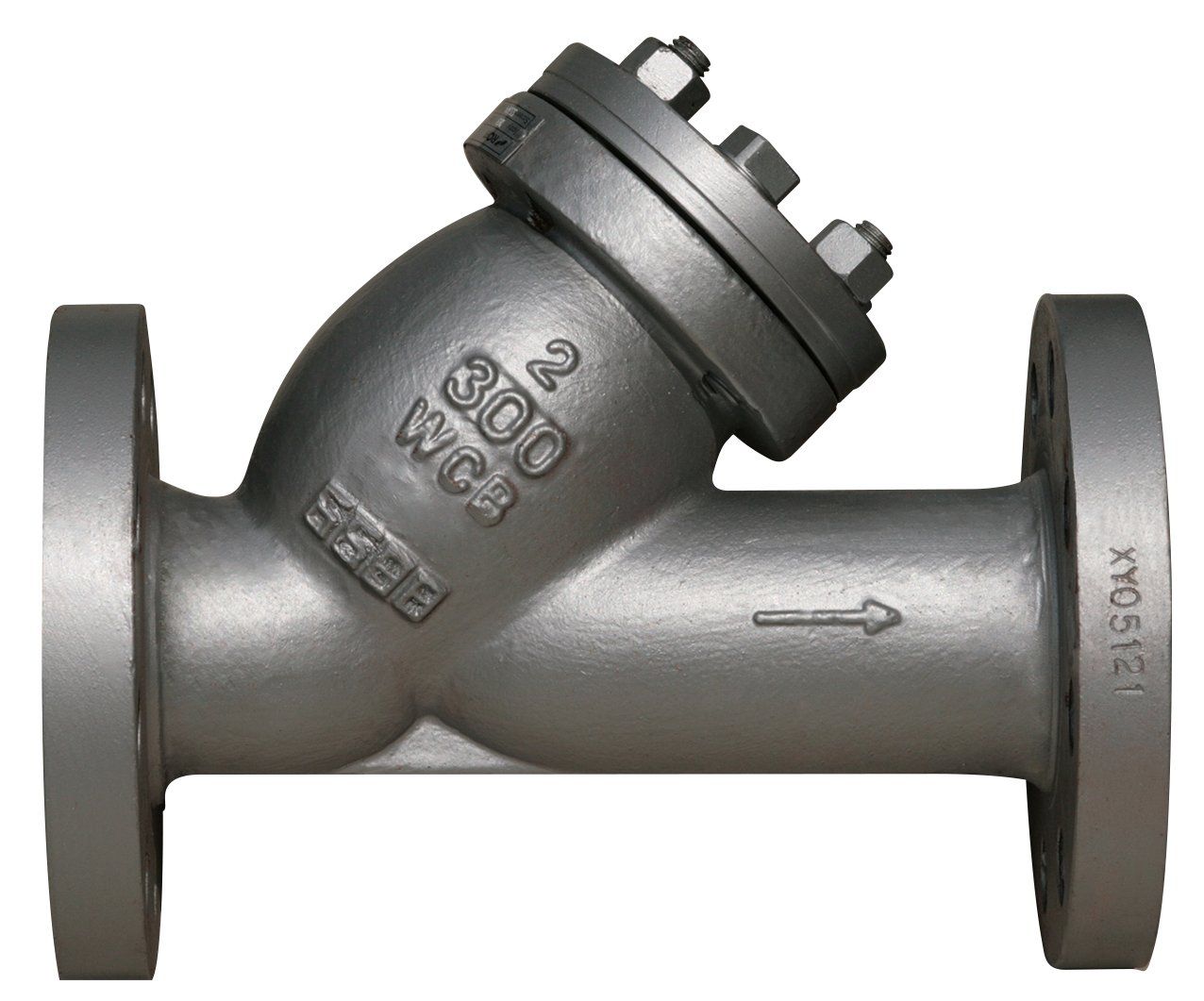

Fig-371
ANSI Y-strainer
body: carbon steel A216 WCBscreen: stainless steel 304
flanged series 300 lbs
DN 2 "- 12"

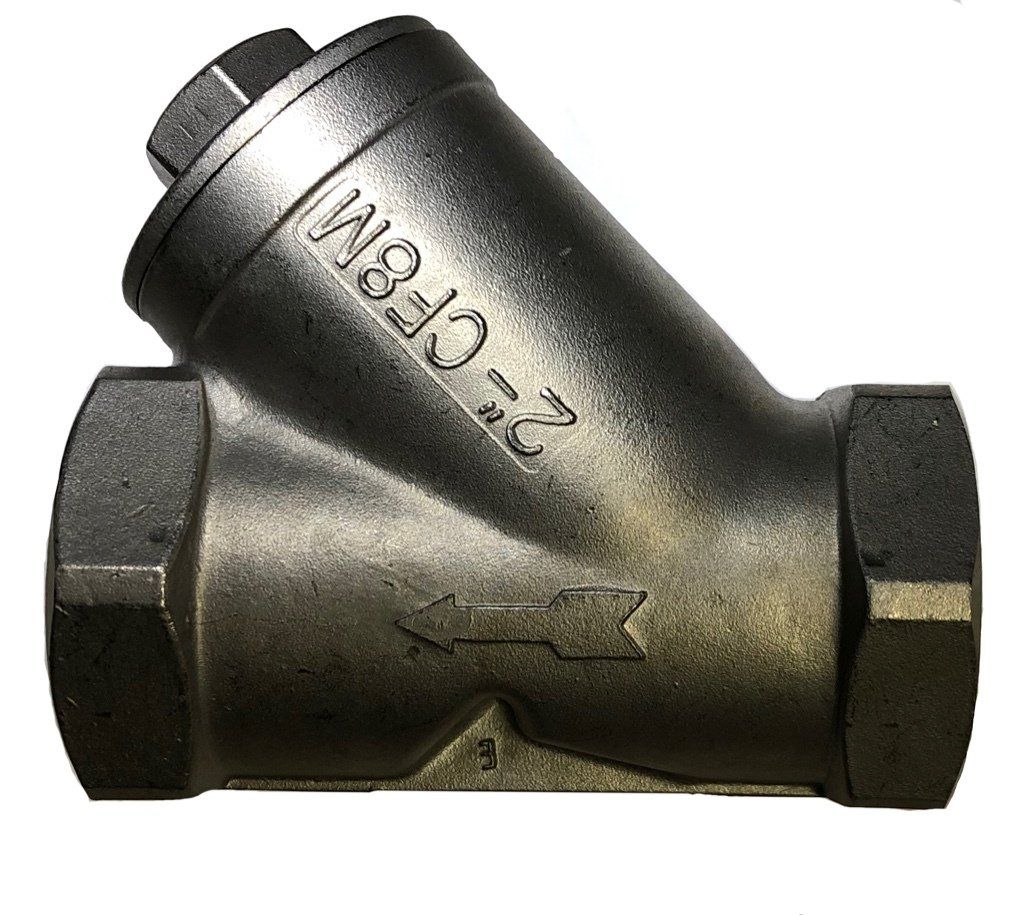

Fig-385
Y-type Strainers, 800 PSI (PN50)body: CF8M, screen: 316,
cover gasket: PTFE, filtration: 0,25mm
female threaded ends acc. ISO 228-1 (BSP)
DN 1/2" - 2"
